Stumpjumper Alloy

Stumpjumper Alloy

SKU: 93321-7102

R 29,000.00
R 42,000.00 R 29,000.00
Sale Sold out
Tax included.
Size
Color

Only 1 left in stock

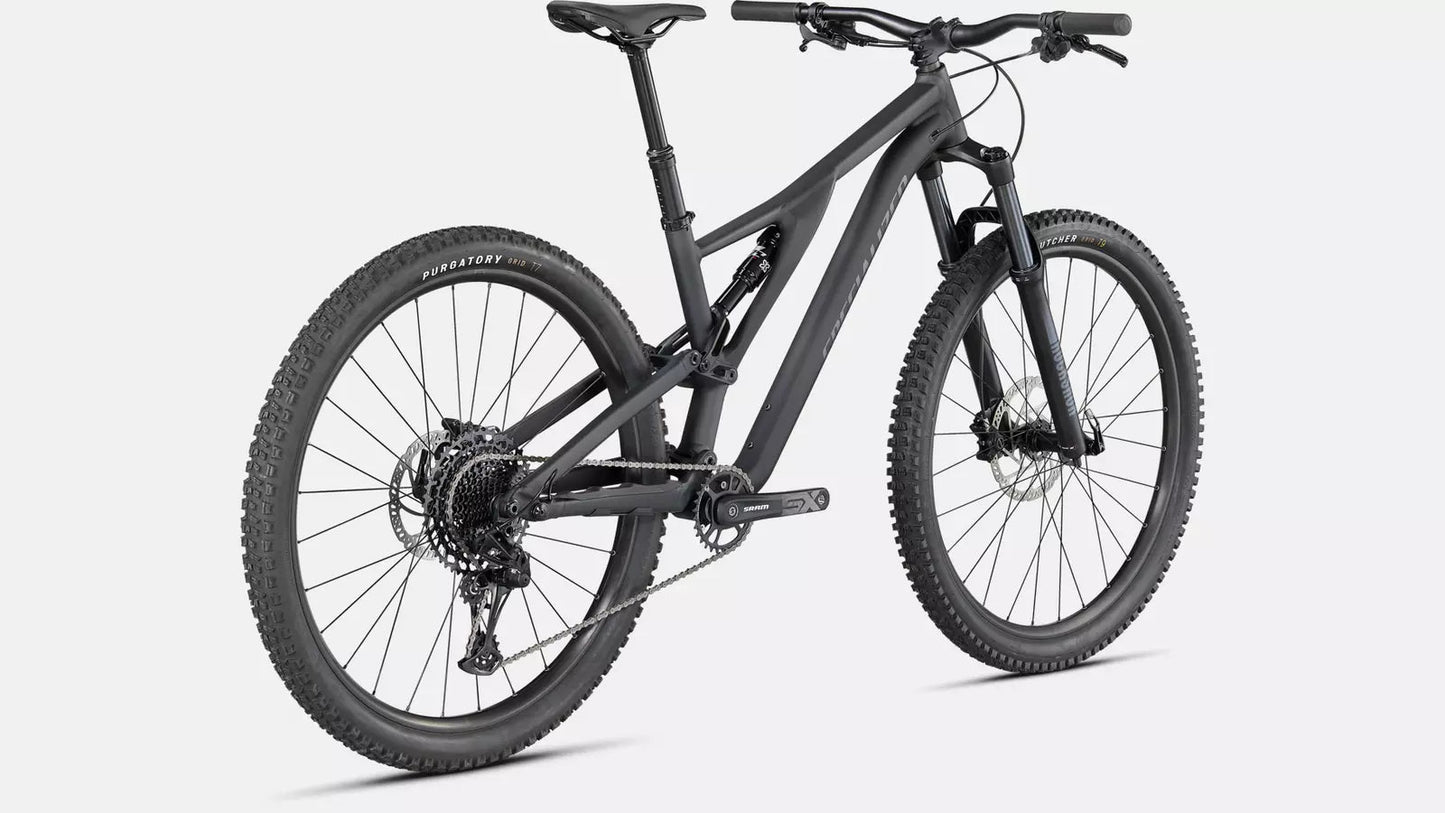

Stumpjumper Alloy

The Stumpjumper Alloy brings all-new suspension kinematics and progressive geometry into a full-alloy package that's both lightweight and extremely durable. Outfitted with a no-fuss SRAM SX 12-speed groupset, the Stumpjumper Alloy is your all-access pass for trail adventure.

  • THE TRAIL BENCHMARK — When we set out to design the all-new Stumpjumper, we pursued some hefty goals. It had to excel on any kind of trail, for every style of rider. To achieve that, we went after serious weight reduction without sacrificing durability, a stiff, responsive chassis that still rides light and lively, geometry that improves everyone’s riding, and the best suspension kinematics we know how to design. Turns out, you can have your cake and eat it too with the new Stumpjumper.
  • THE SWEETEST 130MM OF TRAVEL YOU’LL EVER RIDE — We massaged the kinematics of the Stumpjumper suspension to bring out the very best all-round performance possible in a 130mm package. Countless hours of suspension lab development and field testing created a refined mid-travel ripper that eats big terrain like a gravity fed beast, handles like a dream everywhere, and climbs like it has a motor.
  • PROGRESSIVE GEOMETRY — The S-Sizing geometry of the new Stumpjumper hits the progressive sweet spot. It’s long, low and slack, with a short offset fork and a steeper seat tube angle. These numbers combine to make your ride more stable, more carvealicious, more comfortable climbing, more better everywhere. With FlipChip adjustability you’re able to further fine-tune your fit, ensuring that your new Stumpjumper performs flawlessly on whatever terrain you choose.
  • RIDER-FIRST ENGINEERED™ — Rider-First Engineered™ frames use a size-specific approach to ride characteristics that ensures benchmark handling and flawless performance, regardless of frame or rider size. Whether you’re a jump-happy grom riding an S1, or a DH-fiend giant in need of the lengthy S6, you’ll experience the same ride traits – rail-sharp cornering and balanced front and rear stiffness – at the lightest-possible weight, And by light, we mean real light: 2,250 grams (S-Works, S-3 size, with rear shock).
View full details

Technical Specifications

WHEELS

Rear Tire

Purgatory, GRID Casing, GRIPTON® compound, 29x2.3"

Rims

Roval 29, hookless alloy, 30mm inner width, tubeless ready

Front Tire

Butcher, GRID casing, GRIPTON® compound, 29x2.3"

Front Hub

Alloy, sealed cartridge bearings, 15x110mm thru-axle, 28h

Inner Tubes

Standard, Presta valve

Spokes

Stainless, 14g

Rear Hub

Alloy, sealed cartridge bearings, 12x148mm thru-axle, 32h



COCKPIT

Saddle

Body Geometry Bridge Saddle, steel rails

SeatPost

TranzX dropper, 34.9mm, S1: 100mm, S2: 125mm, S3: 150mm. S4-S5: 170mm, S6- 200mm

Handlebars

Specialized, 6061 alloy, 6-degree upsweep, 8-degree backsweep, 30mm rise, 780mm width

Tape

Specialized Trail Grips

Stem

Alloy Trail Stem, 35mm bar bore



DRIVETRAIN

Chainrings

30T

Crankset

SRAM SX Eagle, S1:165mm, S2-S5: 170mm, S6: 175mm

Rear Derailleur

SRAM SX Eagle, 12-speed

Shift Levers

SRAM SX Eagle, trigger, 12-speed

Cassette

SRAM PG-1210 Eagle, 11-50t

Chain

SRAM SX Eagle, 12-speed

Bottom Bracket

SRAM Powerspline



FRAMESET

Frame

Alloy chassis and rear-end, asymmetrical design, 29 Trail Geometry, horst pivot BB adjustment, threaded BB, 12x148mm dropouts, sealed cartridge bearing pivots, replaceable derailleur hanger, 130mm of travel

Seat Binder

Alloy, 38.6



BRAKES

Front Brake

Tektro Gemini Comp, hydraulic disc, resin pad, 200mm

Rear Brake

Tektro Gemini Comp, hydraulic disc, resin pad, 180mm



Suspension

Fork

RockShox 35 Silver, Solo Air, 44mm offset, rebound adjust, TurnKey lockout, 15x110mm Boost™ Maxle® Lite thru-axle, 140mm of travel

Rear Shock

X-Fusion 02 Pro RL, Rx Trail Tune, rebound adjust, lockout S1:190x42.5mm, S2-S6: 190x45mm



* Weights based on production painted frames as pictured. Actual weights will vary based on colourway, frame size, and component variation. Specifications are subject to change without notice.

Geometry

 S1S2S3S4S5S6
Crank Length165mm170mm170mm170mm170mm175mm
Handlebar Width780mm780mm780mm780mm780mm780mm
Stem Length40mm40mm50mm50mm50mm50mm
Saddle Width155mm155mm143mm143mm143mm143mm
Seatpost Length100 mm125 mm150 mm170 mm170 mm200 mm
Stack (Low BB)618mm613mm623mm631mm639mm649mm
Stack (High BB)614mm609mm618mm627mm640mm644mm
Reach (Low BB)410mm430mm450mm475mm500mm530mm
Reach (High BB)416mm435mm455mm480mm505mm535mm
Headtube Length100mm100mm110mm120mm130mm140mm
Headtube Angle (Low BB)65°65°65°65°65°65°
Headtube Angle (High BB)65.5°65.5°65.5°65.5°65.5°65.5°
BB Height (Low BB)327mm332mm332mm332mm332mm332mm
BB Height (High BB)334mm339mm339mm339mm339mm339mm
BB Drop (Low BB)47mm42mm42mm42mm42mm42mm
BB Drop (High BB)40mm35mm35mm35mm35mm35mm
Trail (Low BB)126mm126mm126mm126mm126mm126mm
Trail (High BB)122mm122mm122mm122mm122mm122mm
Fork Length (full)550mm550mm550mm550mm550mm550mm
Fork Rake/Offset44mm44mm44mm44mm44mm44mm
Front Center726mm746mm770mm799mm828mm863mm
Chainstay Length (Low BB)444mm444mm444mm444mm454mm454mm
Chainstay Length (High BB)440mm440mm440mm440mm450mm450mm
Wheelbase (Low BB)1168mm1188mm1212mm1241mm1280mm1315mm
Wheelbase (High BB)1164mm1184mm1208mm1237mm1276mm1311mm
Top-tube Length (horizontal)545mm563mm586mm615mm643mm676mm
Bike Standover Height742mm742mm750mm753mm777mm784mm
Seat Tube Length385mm385mm405mm425mm445mm465mm
Seat Tube Angle (Low BB)77.7°77.7°77.5°77.2°77°76.9°
Seat Tube Angle (High BB)78.2°78.2°77.9°77.7°77.5°77.3°
Max Seatpost Insertion190mm190mm210mm230mm250mm270mm
Min Seatpost Insertion100mm100mm100mm100mm100mm100mm
