Technical Specifications
SUSPENSION
Rear Shock
S2-S6: Fox Float X Performance elite series, 210x55mm, S1: Fox Float DPS Performance elite series, , 210x50mm
Fork
Fox 36 Performance Elite, 29", 44mm offset, Grip 2 damper, S1: 150mm, S2-S6:160mm
COCKPIT
Stem
Alloy Trail Stem, 35mm bar bore
Saddle
Bridge Comp, Hollow Cr-mo rails, 155/143mm
Grips
Deity Grips
SeatPost
OneUp, Dropper Post-V2, MMX lever, 34.9 (S1:120mm, S2/S3:150mm, S4: 180mm, S5/S6: 210mm)
Handlebars
Specialized Trail, 7050 alloy, 8-degree backsweep, 6-degree upsweep, 30mm rise, 800mm, 35mm clamp
FRAMESET
Seat Binder
Alloy, 38.6mm
Frame
All new Levo SL carbon Frame, Fact 11m carbon, alloy shock extension, 150mm travel, adjustable head angle, BB height, and compatible with 27.5 or 29" wheels.
WHEELS
Front Tire
Butcher, GRID TRAIL casing, GRIPTON® T9 compound, 2Bliss Ready, 29x2.3"
Rear Tire
Eliminator, GRID TRAIL casing, GRIPTON® T7 compound, 2Bliss Ready, 27.5 x 2.3"
Inner Tubes
Standard, Presta Valve
Rear Wheel
Traverse 27.5
Front Wheel
Traverse 29
E-BIKE
Wiring Harness
Custom Specialized wiring harness
Charger
Custom charger, 48V System w/ SL system charger plug

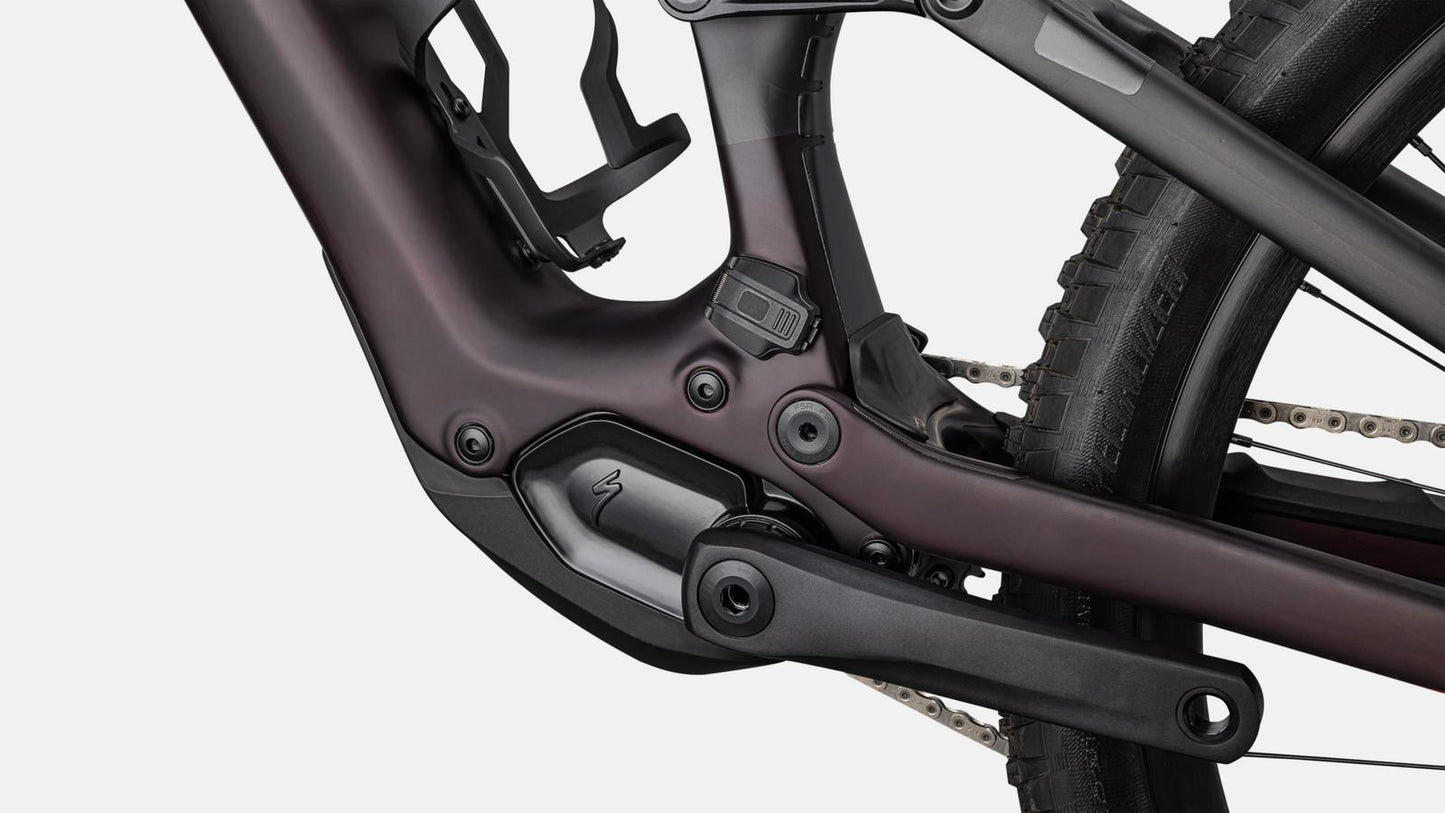

Motor
New Specialized 1.2 SL Custom Rx Trail Tuned Motor
UI/Remote
Specialized MasterMind TCU, percentage of remaining charge, 120 possible display configurations, MicroTune assist adjustment, ANT+/Bluetooth®, w/Handlebar remote
Battery
Specialized SL1-320, fully integrated, 320Wh
DRIVETRAIN
Chainrings
New SL 1.2 spider, 104BCD w/SRAM 32t Transmission compatible alloy ring
Shift Levers
SRAM AXS POD Controller
Cassette
SRAM GX Eagle Transmission Cassette, 12spd, 10-52t
Crankset
SRAM Alloy Crankset, Dub interface
Rear Derailleur
SRAM GX Eagle Transmission Derailleur
Chain
SRAM GX Eagle Transmission Flattop Chain
ACCESSORIES
SWAT
SWAT CC steerer tube integrated tool with chain tool and link
BRAKES
Front Brake
SRAM Code Silver Stealth, 4-piston caliper, hydraulic disc, 200mm
Rear Brake
SRAM Code Silver Stealth, 4-piston caliper, hydraulic disc, 200mm
* Weights based on production painted frames as pictured. Actual weights will vary based on colourway, frame size, and component variation. Specifications are subject to change without notice.
Geometry
S1 | S2 | S3 | S4 | S5 | S6 | |
---|---|---|---|---|---|---|
Crank Length | 165mm | 165mm | 170mm | 170mm | 170mm | 175mm |
Handlebar Width | 780mm | 780mm | 780mm | 780mm | 780mm | 780mm |
Stem Length | 40mm | 40mm | 40mm | 40mm | 50mm | 50mm |
Saddle Width | 155mm | 155mm | 143mm | 143mm | 143mm | 143mm |
Seatpost Length | 120mm | 150mm | 150mm | 180mm | 210mm | 210mm |
Stack | 609mm | 617mm | 626mm | 635mm | 645mm | 654mm |
Reach | 405mm | 425mm | 445mm | 470mm | 495mm | 525mm |
Head-Tube Length | 95mm | 100mm | 110mm | 120mm | 130mm | 140mm |
Head-Tube Angle | 64.6° | 64.6° | 64.6° | 64.6° | 64.6° | 64.6° |
B-B Height | 343mm | 348mm | 348mm | 348mm | 348mm | 348mm |
B-B Drop | -34mm | -29mm | -29mm | -29mm | -29mm | -29mm |
Trail | 132mm | 132mm | 132mm | 132mm | 132mm | 132mm |
Fork Length, Full | 560mm | 570mm | 570mm | 570mm | 570mm | 570mm |
Fork Rake/Offset | 42mm | 42mm | 42mm | 42mm | 42mm | 42mm |
Front-Center | 726mm | 752mm | 776mm | 806mm | 835mm | 869mm |
Chain-Stay Length | 433mm | 432mm | 432mm | 432mm | 432mm | 432mm |
Wheelbase | 1158mm | 1184mm | 1208mm | 1238mm | 1267mm | 1301mm |
Top Tube Length, Horizontal | 560mm | 582mm | 604mm | 631mm | 659mm | 691mm |
Bike Stand-Over Height | 727mm | 763mm | 766mm | 767mm | 773mm | 778mm |
Seat-Tube Length | 385mm | 385mm | 405mm | 425mm | 445mm | 465mm |
Seat-Tube Angle | 75.8° | 75.8° | 75.8° | 75.8° | 75.8° | 75.8° |
